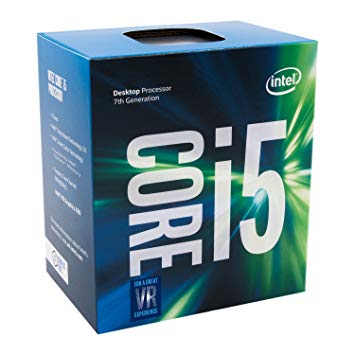

| Intel® Core™ i5-7500 Processor (6M Cache, up to 3.80 GHz) |
|
| Essentials |
| Processor Number |
i5-7500 |
| Status |
Launched |
| Lithography |
14 nm |
| Performance |
| # of Cores |
4 |
| # of Threads |
4 |
| Processor Base Frequency |
3.40 GHz |
| Max Turbo Frequency |
3.80 GHz |
| Cache |
6 MB SmartCache |
| Bus Speed |
8 GT/s DMI3 |
| # of QPI Links |
0 |
| TDP |
65 W |
| Supplemental Information |
| Embedded Options Available |
Yes |
| Conflict Free |
Yes |
| Memory Specifications |
| Max Memory Size (dependent on memory type) |
64 GB |
| Intel® Optane™ Memory Supported ‡ |
Yes |
| Memory Types |
DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V |
| Max # of Memory Channels |
2 |
| ECC Memory Supported ‡ |
No |
| Graphics Specifications |
| Processor Graphics ‡ |
Intel® HD Graphics 630 |
| Graphics Base Frequency |
350.00 MHz |
| Graphics Max Dynamic Frequency |
1.10 GHz |
| Graphics Video Max Memory |
64 GB |
| 4K Support |
Yes, at 60Hz |
| Max Resolution (HDMI 1.4)‡ |
4096×2304@24Hz |
| Max Resolution (DP)‡ |
4096×2304@60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ |
4096×2304@60Hz |
| DirectX* Support |
12 |
| OpenGL* Support |
4.4 |
| Intel® Quick Sync Video |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Clear Video HD Technology |
Yes |
| Intel® Clear Video Technology |
Yes |
| # of Displays Supported ‡ |
3 |
| Device ID |
0x5912 |
| Expansion Options |
| Scalability |
1S Only |
| PCI Express Revision |
3.0 |
| PCI Express Configurations ‡ |
Up to 1×16, 2×8, 1×8+2×4 |
| Max # of PCI Express Lanes |
16 |
| Package Specifications |
| Sockets Supported |
FCLGA1151 |
| Max CPU Configuration |
1 |
| Thermal Solution Specification |
PCG 2015C (65W) |
| T<sub>JUNCTION</sub> |
100°C |
| Package Size |
37.5mm x 37.5mm |
| Low Halogen Options Available |
See MDDS |
| Advanced Technologies |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® vPro Technology ‡ |
Yes |
| Intel® Virtualization Technology (VT-x) ‡ |
Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
| Intel® TSX-NI |
Yes |
| Intel® 64 ‡ |
Yes |
| Instruction Set |
64-bit |
| Instruction Set Extensions |
SSE4.1/4.2, AVX 2.0 |
| Idle States |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Identity Protection Technology ‡ |
Yes |
| Intel® Stable Image Platform Program (SIPP) |
Yes |
| Intel® Data Protection Technology |
| Intel® AES New Instructions |
Yes |
| Secure Key |
Yes |
| Intel® Software Guard Extensions (Intel® SGX) |
Yes |
| Intel® Memory Protection Extensions (Intel® MPX) |
Yes |
| Intel® Platform Protection Technology |
| OS Guard |
Yes |
| Trusted Execution Technology ‡ |
Yes |
| Execute Disable Bit ‡ |
Yes |
| Intel® Device Protection Technology with Boot Guard |
Yes |
